Oil-free screw blower is a new type, high efficiency, energy saving and environmental protection air blast equipment, widely used in sewage treatment, pneumatic conveying, fermentation, desulfurization and denitrification and other fields. It is a kind of air blast equipment with screw rotor structure, which realizes the compression and transportation of gas through the rotation and meshing of the screw. Compared to traditional Roots blowers, oil-free screw blowers do not require lubricating oil lubrication, avoiding oil contamination problems, while having higher efficiency and lower noise.

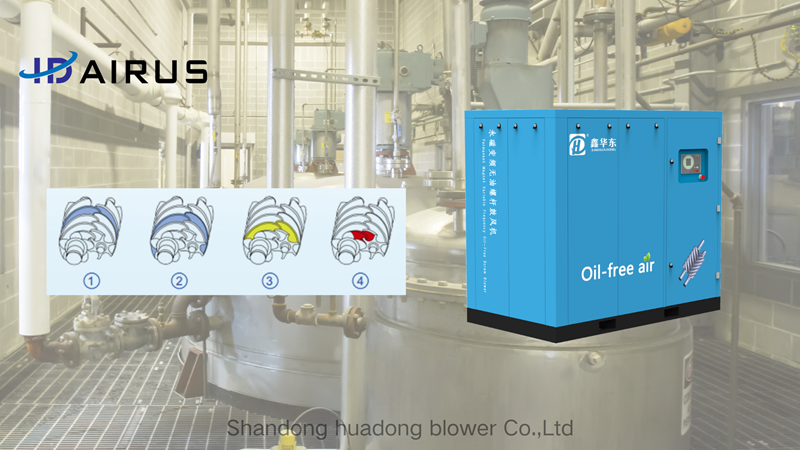

The working process of oil-free screw blower includes three stages: suction, compression and exhaust:

1. Suction process: When the screw rotates, a sealing studio is formed between the convex and the groove of the screw, the intake valve is opened, and the gas enters the studio through the intake pipe.

2. Compression process: With the rotation of the screw, the volume of the studio is gradually reduced, and the gas is compressed.

3. Exhaust process: When the volume of the studio reaches the minimum value, the exhaust valve is opened and the compressed gas is pushed into the exhaust pipe

Characteristics:

1. High efficiency and energy saving: Using the working principle of internal compression, oil-free screw blowers have higher efficiency in different pressure segments, which can save up to 35% compared to traditional Roots blowers.

2. Oil-free design: no lubricating oil is used in the compression process to ensure that the output gas is oil-free and meets the Class 0 standard.

3. Low noise: With a low noise design, the operating noise is as low as 75 dB, significantly lower than traditional Roots blowers.

4. Low maintenance costs: no need to change lubricants or filter cartridges, reducing maintenance effort and downtime.

5. Plug and play: easy to install, no need to bury the foundation, only need to connect the exhaust pipe network and cable to run.

Oil-free screw blowers are widely used in the following fields:

1. Sewage treatment: used for aeration, air water recoil and other processes.

2. Pneumatic conveying: suitable for cement plant, chemical plant and other powder conveying.

3. Fermentation and desulfurization and denitrification: To provide oil-free compressed air for fermentation process, or for desulfurization and denitrification process.

4. Food and Pharmaceutical industry: Provides oil-free, clean compressed air to meet the stringent requirements of the food and pharmaceutical industry.

With its high efficiency, energy saving and environmental protection characteristics, oil-free screw blowers are gradually becoming the ideal air blast equipment in the industrial field.
