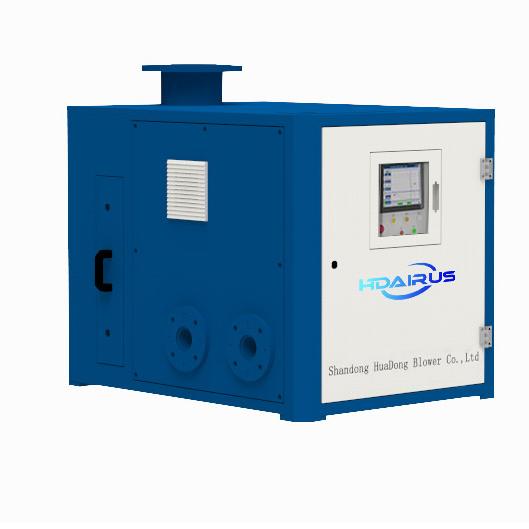

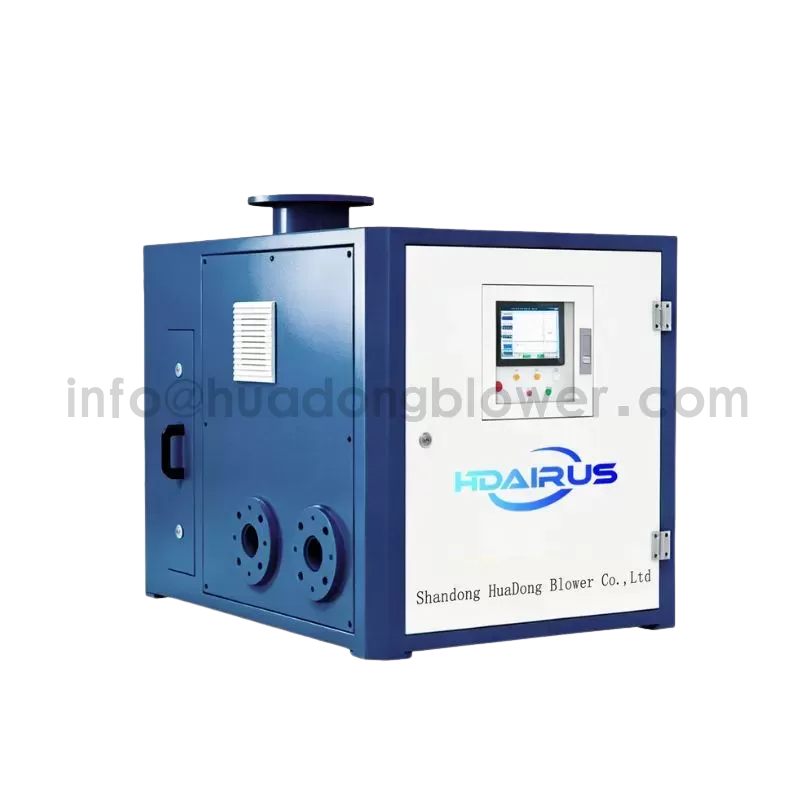

HKVB Air Suspension Centrifugal Vacuum Pump
HDAirus HKVB Air Suspension Centrifugal Vacuum Pump: 40% energy saving, 100% oil-free, and automatic speed adjustment. Low maintenance with zero oil. The ideal high-efficiency solution for industrial vacuum applications.
Type: Air Suspension Turbo Blower
Pressure: 30~100 kpa
Capacity: 28~19 m3/min
Feature: Energy Saving, Lower Energy Cost, Low Noise Level
Product Introduction
High-End Maglev Engineering
HKVB Air Suspension Centrifugal Vacuum Pump represents the latest in high-efficiency R&D. Featuring automatic speed and power adjustment, it achieves energy savings of over 40% while remaining 100% oil-free. Its simplified design eliminates the need for complex maintenance鈥攐nly periodic filter cleaning is required. Perfect for reducing labor costs and operational overhead, it provides reliable, high-performance vacuum for demanding industrial processes.
Technical Specifications
Key Parameters & Energy Efficiency
HKVB Series Performance
| Model | Power | Vacuum -20 | Vacuum -30 | Vacuum -35 | Vacuum -40 | Vacuum -50 |
|---|---|---|---|---|---|---|
| HKVB 15 | 15kW | 43.5 | 30.7 | 27.8 | - | - |
| HKVB 22 | 22kW | 63.8 | 44.7 | 37.2 | - | - |
| HKVB 30 | 30kW | 85.6 | 58.7 | 52.6 | - | - |
| HKVB 37 | 37kW | 106.3 | 72.8 | 63.3 | 58.1 | 49.5 |
Engineering Excellence
The Core of Magnetic Levitation
01
Advanced Air Foil Bearing Technology
Delivering high shock resistance and exceptional stability through a frictionless, high-performance design.
02
3D Flow Optimized Impeller
Utilizing three-way flow theory and 5-axis CNC machining to maximize aerodynamic efficiency.
03
High-Strength Aerospace Materials
Forged aluminum or titanium alloy construction ensuring superior deformation resistance and durability.
04
High-Efficiency PM Synchronous Motor
Reaching 95% efficiency with precision speed control for optimized power consumption.
05
Simplified Maintenance-Free Operation
High-reliability engineering designed for easy operation and minimal long-term service requirements.
Compliance & Trust
Industrial Standards Certified
CE
EAC
ISO9001
ATEX
Industrial Deployment
Where Power Meets Precision
Food
Cement
Pharmaceutical
Textile
Service & FAQ
Operational Support
Do you provide installation and after-sales support?
Yes. We offer remote guidance and global technical support for installation, commissioning, and after-sales service.
What applications are suitable?
Common uses include wastewater aeration, aquaculture, pneumatic conveying, fermentation, and industrial oxidation.
How much energy can be saved?
Energy savings are typically 20鈥40% compared with traditional Roots blowers, depending on pressure and operating conditions.
Is the discharged air completely oil-free?
Yes. There is no oil in the compression chamber, ensuring clean air for sensitive uses like aquaculture and wastewater.
Why choose a turbo blower over a Roots blower?
Turbo blowers offer higher efficiency, lower noise, oil-free air, smaller size, and reduced maintenance compared to Roots blowers.
Airfoil vs magnetic bearing 鈥 what's the difference?
Airfoil bearings use an air film for support. Magnetic bearings use electromagnetic force. Both are oil-free and high efficiency.
