Airfoil Motor
HDAirus High-Speed Airfoil Motor: The core engine for air bearing turbo blowers. 100% oil-free, energy-efficient, and maintenance-free. Ideal for OEM integration and blower upgrades in industrial aeration and aquaculture.
Product Introduction
High-End Maglev Engineering
HDAirus Airfoil Motor is the high-performance core designed for modern air bearing turbo blowers. This ultra-high-speed motor utilizes advanced air-foil technology for 100% oil-free and frictionless operation. Compact and highly efficient, it is the perfect solution for OEM manufacturers and system integrators. Boost your equipment鈥檚 performance with our reliable, maintenance-free motor, tailored for sustainable industrial aeration and advanced air compression systems.
Technical Specifications
Key Parameters & Energy Efficiency
HKB Series Technical Specifications
| Model | Pressure (kPa) | Flow Rate (m鲁/min) | Motor Power | Outlet (mm) | Cooling Type |
|---|---|---|---|---|---|
| HKB20 | 30 - 80 | 6 - 15 | 20HP / 15kW | DN150 | AIR COOLING |
| HKB30 | 30 - 80 | 7 - 25 | 30HP / 22kW | DN150 | AIR COOLING |
| HKB50 | 30 - 80 | 10 - 25 | 50HP / 37kW | DN150 | AIR COOLING |
| HKB75 | 30 - 100 | 18 - 62 | 75HP / 55kW | DN200 | AIR COOLING |
| HKB100 | 30 - 100 | 23 - 105 | 100HP / 75kW | DN200 | AIR COOLING |
| HKB125 | 30 - 80 | 25 - 115 | 125HP / 90kW | DN200 | AIR COOLING |
| HKB150 | 30 - 100 | 28 - 130 | 150HP / 110kW | DN300 | AIR COOLING |
| HKB200 | 30 - 100 | 36 - 210 | 200HP / 150kW | DN300 | AIR COOLING |
| HKB250 | 30 - 100 | 40 - 235 | 250HP / 185kW | DN300 | AIR COOLING |
| HKB300 | 30 - 100 | 80 - 260 | 300HP / 220kW | DN400 | AIR COOLING |
| HKB400 | 30 - 100 | 80 - 275 | 400HP / 300kW | DN500 | AIR COOLING |
Engineering Excellence
The Core of Magnetic Levitation
01
Frictionless Airfoil Technology
Utilizing air buoyancy to eliminate mechanical contact, enabling ultra-high speeds with zero wear.
02
High-Efficiency PM Synchronous Design
Achieving superior power density and up to 95% efficiency for maximum energy conversion.
03
Maintenance-Free & Oil-Free Operation
Eliminating lubrication and cooling complexity to ensure a clean, long-life industrial solution.
Compliance & Trust
Industrial Standards Certified
CE
EAC
ISO9001
ATEX
Industrial Deployment
Where Power Meets Precision
Textile

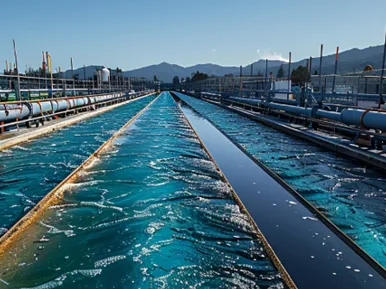

Wastewater Treatment
Food
Pharmaceutical
Service & FAQ
Operational Support
Do you provide installation and after-sales support?
Yes. We offer remote guidance and global technical support for installation, commissioning, and after-sales service.
What applications are suitable?
Common uses include wastewater aeration, aquaculture, pneumatic conveying, fermentation, and industrial oxidation.
How much energy can be saved?
Energy savings are typically 20鈥40% compared with traditional Roots blowers, depending on pressure and operating conditions.
Is the discharged air completely oil-free?
Yes. There is no oil in the compression chamber, ensuring clean air for sensitive uses like aquaculture and wastewater.
Why choose a turbo blower over a Roots blower?
Turbo blowers offer higher efficiency, lower noise, oil-free air, smaller size, and reduced maintenance compared to Roots blowers.
Airfoil vs magnetic bearing 鈥 what's the difference?
Airfoil bearings use an air film for support. Magnetic bearings use electromagnetic force. Both are oil-free and high efficiency.
